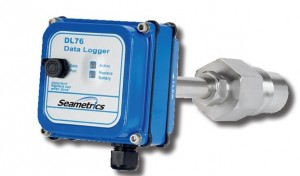

Seametrics Flow Meter DL76 Data Logger
GENERAL INFORMATION
The DL76 is a battery-powered data logger that can be used with any Seametrics flowmeter. It stores pulses for up to 3 years, depending on the user-selected frequency of reading. Indicator lights on the unit flash to indicate when it is functioning and when the battery is low. The DL76 can be factory-mounted on the meter or remotely mounted. Housings are rugged cast aluminum, gasketed for environmental protection. When a DL76 logger is placed into operation, it is easily set up using a laptop computer. Data is also retrieved from the DL76 by means of a laptop and can be analyzed on the laptop or easily loaded on a desktop computer for analysis.
*FlowInspector version 2 software (ordered separately) is required for the downloading, storing, viewing, graphing, charting and printing of data in several formats. FlowInspector requires a PC with Windows 98, NT, 2000, XP, Vista or Windows 7; CD-Rom drive; 800 x 600 screen resolution; serial port or USB/serial adapter; and a Seametrics DC3 data cable. FlowInspector can be used with an unlimited number of dataloggers.
FEATURES
• Easy to set-up, easy to use
• Weeks/months/years of data storage
• User-selected sampling interval
• Data retrieval with laptop computer
• Single data retrieval device serves multiple data loggers
APPLICATIONS
• Water usage monitoring, reporting, and management
• Custody transfer regulation
• Peak demand monitoring
SPECIFICATIONS
| Power | Size C 3.6 Vdc lithium battery (included) |
| Battery Life | Estimated life is 3-5 years depending on usage |
| Temperature | 0Ëš to 130Ëš F (-18Ëš to 54ËšC) |
| Rate Units                                Volume | mL, liter, gallon, Imperial gallon, cubic foot, cubic meter, million gallon |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Time | Seconds, minutes, hours, days |
| Total Units | Liter, gallon, Imperial gallon, cubic foot, cubic meter, million gallon, acre-foot, acre-inch, megaliter, thousand-gallon |
| Data Storage Capacity
|
Capacity            at         Sampling Interval |
| 11 days                       at               15 seconds | |
| 22 days                       at               30 seconds | |
| 44 days             at                60 seconds | |
| 6 months            at               240 seconds | |
| 1 year               at                480 seconds | |
| 3 years                   at               1450 seconds | |
| Maximum Input Frequency | 500 Hz |
| Indicators | Low battery; Power |
| Memory Wraparound | Selectable options (Stop or Overwrite) |
| Clock Accuracy | 10 minutes/month (.02%) |
