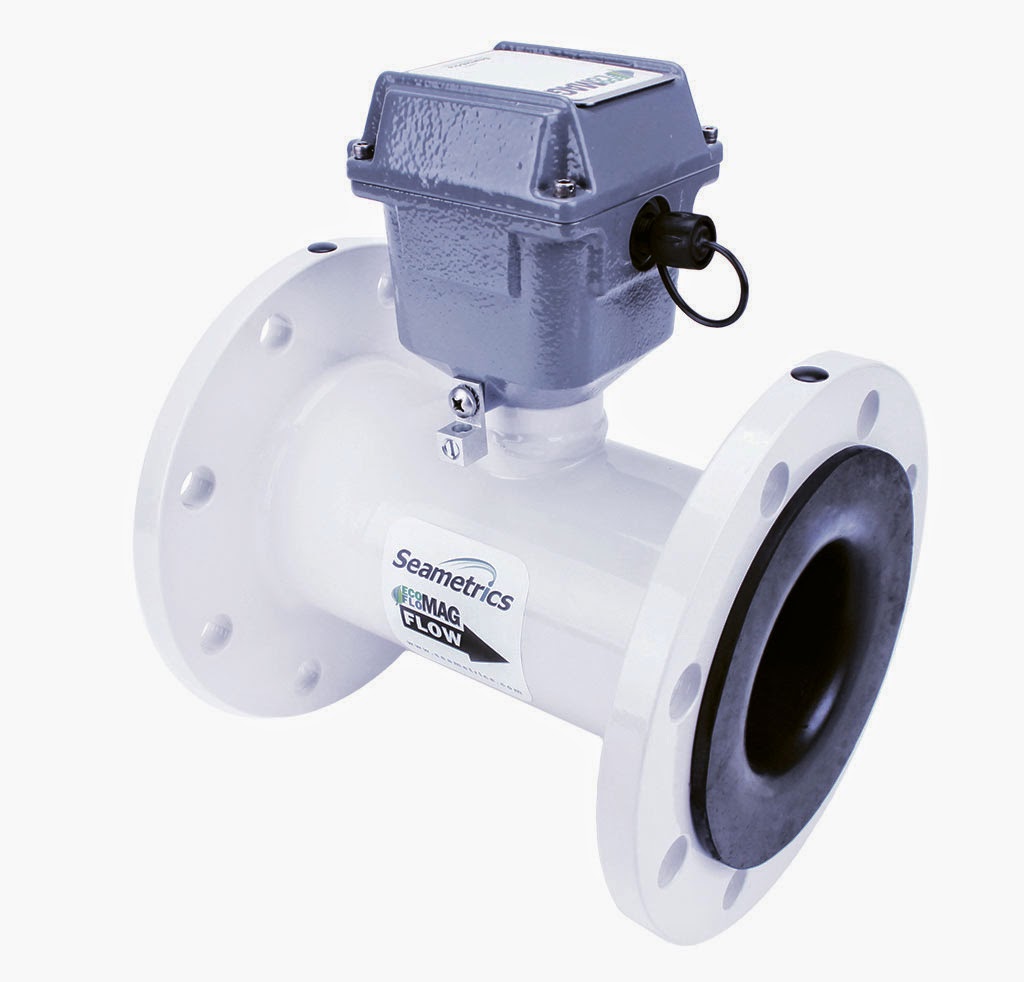

Seametrics Flow Meter iMAG-SERIES Flanged Magmeter
GENERAL INFORMATION
The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. It is used in 3” to 12”
pipe in municipal or industrial water, wastewater, pump stations and packaged plant applications. The iMAG has no moving parts and electrodes are designed to discourage fouling. This magmeter requires no maintenance in applications where debris would impede mechanical meters. There are no parts to wear out. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.
iMAG-Series meters are rated IP68 for applications where the meter may be under water up to a depth of 10 feet (3 meters)
for prolonged periods of time. Rate and total indication are standard. Rate and total units and pulse output are settable via the front panel touch key pad by
the user. The iMAG can be externally powered with 9-36 Vdc at 30 mA. The standard 20-foot (6 meter) cable also provides outputs for use with a variety of Seametrics and other displays and controls for remote reading, data logging and telemetry applications. 4-20mA passive current loop and high frequency outputs are optional. The iMAG 3600 remote display meter can be supplied with an optional internal AC power supply.
FEATURES
• Easy setup
• Minimal straight pipe
• Mounted or remote rate & total
• Tamper-evident seal
• NSF-61 approved
• IP68 rated
THE RIGHT METER FOR
• Water & wastewater
• Municipal
• Treatment plants
• Pump stations
• Packaged plants
• Filtration systems
SPECIFICATIONS
| Pipe Size | 3”,4”, 6”, 8”, 10”,12” | ||||||||
| Flanges | 150 lb. ANSI pattern | ||||||||
| Pressur | 150 psi (10.3 bar) working pressur | ||||||||
| Temperature | Operating | 10˚ to 130˚ F (-12˚ to 54˚ C) | |||||||
| Storage | -40˚ to 158˚ F (-40˚ to 70˚ C) | ||||||||
| Accuracy | +/- 1% of reading +/- 0.25% of full-scale flow from low flow cutoff to maximum flow rate of 10 m/se | ||||||||
| Low Flow Cutof | 0.5% of maximum flow rat | ||||||||
| Materials | Body (3” Only) | Ductile cast iron, powder-coated w/NSF61 listed epoxy powde | |||||||
| Body (4”-12” | Welded steel, epoxy-coated | ||||||||
| Liner (3” Only | Noryl® | ||||||||
| Liner (4”-12”) | Santoprene/Polypropylen | ||||||||
| Electronics Housing | Ductile cast iron, powder-coate | ||||||||
| Electrodes | 316 stainless stee | ||||||||
| O-ring (3” Only) | EPDM | ||||||||
| Display | Type | 128×64 dot-matrix LCD | |||||||
| Digits | 5 Digit Rate | ||||||||
| Units | Rate Volume Units | Rate Time Units | Total Volume Units | ||||||
| Gallons
Liters Cubic Feet Cubic Meters Million Gallons Mega Liters Imperial Gallons Million Imperial Gallons |
Second
Minute Hour Day |
Gallons
Gallons x 1000 Million Gallons Liters Liters x 1000 Mega Liters
Cubic Meters Cubic Meters x 1000 Cubic Feet Cubic Feet x 1000 Imperial Gallons Imperial Gallons x 1000 Million Imperial Gallons |
|||||||
| Power | DC Power | 9-36 Vdc @ 250 mA max, 30 mA average | |||||||
| AC Power1 | 85-264Vac, 50/60Hz, 0.12A | ||||||||
| Telemetry Output | 3.3V asynchronous receive and transmit (UART) signals, ASCII command-response protocol | ||||||||
| Pulse Frequency Output | Signal | Current sinking pulse, isolated, 36 Vdc at 10 mA max | |||||||
| Pulse Rates | User-settable volume units/pulse. Pulse width is one-half of pulse period, 200 pulses/sec max | ||||||||
| Options | 4-20mA Current Loop | Isolated, passive, 6-36Vdc, +/- 0.1% of pulse/frequency output HART compliant2 | |||||||
| Digital Output | Isolated, open collector, 36Vdc @ 10mA max., frequency output up to 10kHz | ||||||||
| Relay Output | Solid state relay, normally open, non-polarized, 28Vac/40Vdc @ 0.5A max, 33Hz max | ||||||||
| Serial Communications2 | Isolated, asynchronous serial RS485 or RS232, Modbus RTU protocol | ||||||||
| Cable | Control Cable | Six-conductor water-blocked cable, polyurethane jacket, 20ft (6m) standard length for power, pulse
frequency or optional outputs. Optional lengths up to 100’ available |
|||||||
| Remote Display Cable (iMAG 3600) | 33ft (10m) standard length may be shortened (by user in the field). Additional cable can be ordered and attached with the use of a junction box (purchased from a standard supplier) up to 100ft (30m) total | ||||||||
| Conductivity | >20 microSiemens/cm | ||||||||
| Empty Pipe Detection | Hardware/software, conductivity-based | ||||||||
| Regulatory | (EN 61326) pending, NSF-61 | ||||||||
| Environmental | IP68 to 10ft (3m) depth | ||||||||
