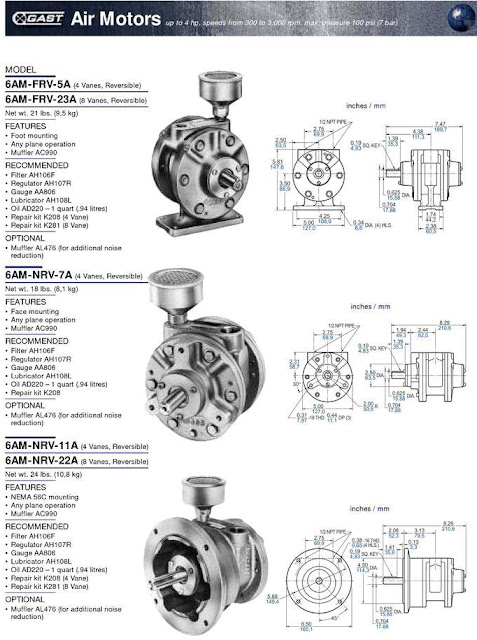

Gast Air Motor 6AM series

Air Motor

Gast Air Motor

6 AM Gast Air Motor

Air Motor 4 HP

Description

Lubricated Air Motors come in seven basic models up to 9.5 HP (7,1 kW); motor speeds are variable from 300 to 10,000 RPM. Choose from hub, foot, face, NEMA C-Flange, or Metric D Series interface mountings and clockwise, counter-clockwise, or reversible rotations; four and eight vane models are also available.

Feature

  • Variable Speed
  • Variable Direction
  • Non-Electrical Sparking
  • Cool Running
  • Compact and Portable
  • Operate in All Positions
  • Mounting Flexibility

Applications

  • Mixing Equipment
  • Conveyor Drives
  • Pump Drives
  • Food Packaging
  • Pharmaceutical Packaging
  • Hoists and Winches
  • Hose Reels
  • Fiberglass Choppers
  • Tension Devices
  • Turntables

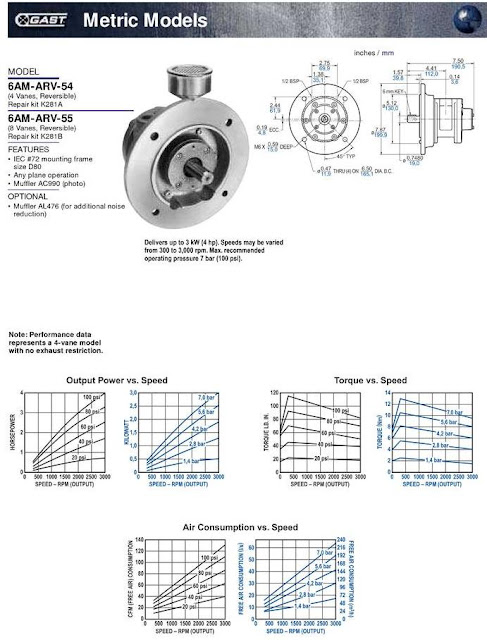

Performance Summary

  • Max Torque : 115 lb/in (13 Nm)
  • Max Speed 3000 rpm
  • Torque @ Max Speed 84 lb/in (10 Nm)
  • Speed @ Max Torque 300 rpm
  • Output Power 4 hp (3 kW)
  • Max Air Consumption 128 cfm (228 m3/h)

Model NumberÂ
