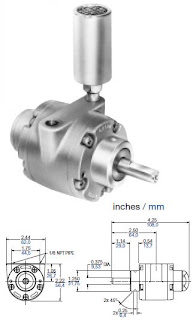

Gast Air Motor 1AM

Air Motor

Gast Air Motor

1AM Gast Air Motor

Air Motor 0,33KW

Gast Air Motor 1AM Model :

Up to 1/2 hp, speeds from 500 to 10,000 rpm, max. pressure 100 psi (7 bar)

  1. 1AM-NCC-12   (4 Vanes, CCW Rotation)
  2. 1AM-NCW-14  (4 Vanes, CW Rotation)
  3. 1AM-NRV-39A  (4 Vanes, Reversible)
  4. 1AM-NRV-63A (8 Vanes, Reversible)

Net wt. : 2 lbs. (0,9 kg)

FEATURES

  • Hub mounting
  • Any plane operation
  • Muffler AF350

RECOMMENDED

  • Filter AH100F
  • Regulator AH101R
  • Gauge AA806
  • Lubricator AH102L
  • Oil AD220 – 1 quart (.94 liters)
  • Repair kit K200 (Single Rotation)
  • Repair kit K201   (Reversible)
  • Repair kit K278
  • (8 Vane, Reversible)

Gast Air Motor 1UP Model :

Up to 1/2 hp, speeds from 500 to 10,000 rpm, max. pressure 100 psi (7 bar)

  1. 1UP-NCC-1A (4 Vanes, CCW Rotation)
  2. 1UP-NCW-2A (4 Vanes, CW Rotation)
  3. 1UP-NRV-3A (4 Vanes, Reversible)
  4. 1UP-NRV-10 (8 Vanes, Reversible)

Net wt. 3 lbs. (1,4 kg)

FEATURES

• Hub mounting

• Any plane operation

• Muffler AF350

RECOMMENDED

• Filter AH100F

• Regulator AH101R

• Gauge AA807

• Lubricator AH102L

• Oil AD220 – 1 quart (.94 liters)

• Repair kit K285 (Single Rotation)

• Repair kit K286 (Reversible)

• Repair kit K298 (8 Vane, Reversible)
