Rheonik Coriolis Flowmeter RHE 07 / RHE 08

Advanced Transmitters from GE’s Rheonik Mass Flowmeter Experts

RHE 07 Features

• Built in barriers allow aperation of RHM sensor in hazardous area, optional ATEX, CSA and other approvals
• Temperature range from -20C to 60C (-4F to 140F)
• Analog outputs (0/4 — 20/22 mA), pulse/frequency outputs, digital outputs and inputs
• optional interface RS 422, RS 485, RS 232 or HART

RHE 07 / 07C Specifications

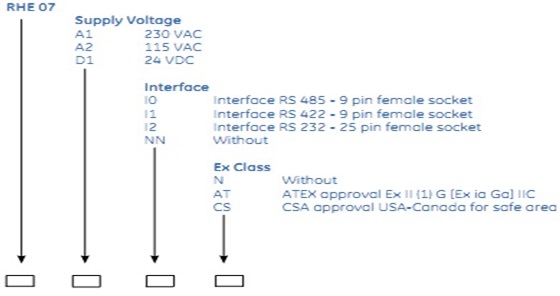

RHE 07 Specifications
Housing	1/3 19* rock module
Enclosure Rating	IP20
Ambient Temperature	-20°C to + 60°C (-4°F to + 140°F)
Dimensions	142 x 128 x 256 mm (5.59 x 5.05 x 10.08 in)
Display	LCD 16 character, 2 lines
Servicing	Via 3 pushbuttons for all settings
Outputs (*)	2 analog, 1 frequency/pulse, 3 digital (programmable)
Inputs(*)	2 digital (programmble)
Power Supply	230 VAC, 115 VAC or 24 VDC; tolerance +/- 10%
Cable Connection	Terminal block
Serial Interface (optional)	RS 422, RS 485 or RS 232
ATEX Approval (optional)	Transmitter: Ex 11 (1) G [Ex ia Ga] IIC sensor: Ex II G, EEx ia IIC T6-T1
CSA Approval (optional)	Transmitter: safe area; sensor: Class 1, Div 1, Groups A, B, C, D (bath for USA, Canada)
Weight	Approx. 1.9 kg (4.2 lb)

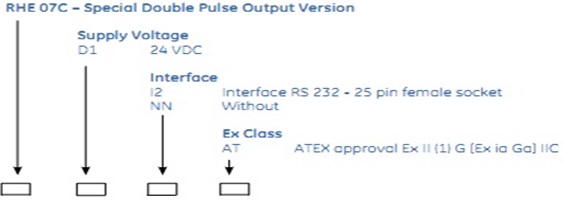

RHE 07C Pecifications-Special Double Pulse Output Version
Housing	2/3, 19* rock module
Enclosure Ranting	IP20
Ambient Temperature	-20°C to +60°C (-4°F to +140°F)
Dimensions	213 x 128 x 300 mm (8.39 x 5.05 x 11.81 in)
Display	LCD 16 characters, 2 lines, backlit
Servicing	Via 3 pushbuttons for all settings, 1 keypad lock switch
Outputs(*)	Double pulse 90* phase shifted, 2 analog, 2 digital (flow direction, errors)
Inputs(*)	2 Digital (programmble)
Power Supply	24 VDC; tolerance +/_ 10%
Cable Connection	Terminal block
Serial Interface (optional)	RS 232
ATEX Approval	Transmitter: Ex II (1) G [Ex ia Ga] IIC sensor: Ex II G, EEx ia IIC T6-T1
Weight	Approx. 3.7 kg (8.2 lb)



RHE 08 Features

• LCD display and three pushbuttons for all settings
• Batch control
• Multifunctions (density, Brix, concentration etc)
• Power consumption less than 15W
• Available in all comman supply voltages
• RHE07C, double pulse version available

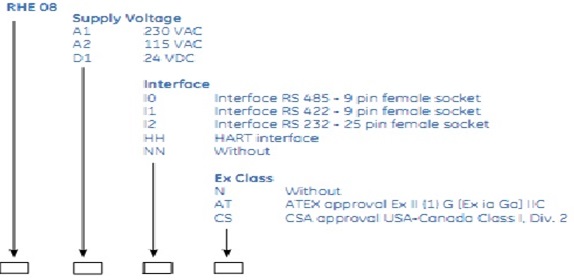

RHE 08 Specifications
Housing	Alumunium (wall mounting)
Enclasure Rating	IP65
Ambient Temperature	-20°C to +60°C (-4°F to +140°F)
Dimensions	332 x 218 x 146 mm (13.07 x 8.58 x 5.75 in)
Display	LCD 16 characters, 2 lines
Servising	Via 3 pushbuttons for all settings
Outputs (*)	2 Analog, 1 frequency/pulse, 3 digital (programmble)
Inputs	(*) 2 digital (programmble)
Power Supply	230 VAC, 115 VAC or 24 VDC; tolarance +/- 10%
Cable Entries	4 x M25, others optional
Serial Interface (optional)	RS 422, RS 485, RS 232 or HART
ATEX Approval (optional)	Transmitter: Ex II (1) G [Ex ia Ga] IIC; sensor: Ex II 1 G, EEx ia IIC T6-T1
CSA Approval (optional)	Transmitter : Class 1, Div 2; sensor: Class 1, Div 1, Gr. A, B, C, D (bath for USA, Canada)
Weight	Approx. 4.7 kg (10.4 lb)
