Rheonik Coriolis Flowmeter RHE 11 / RHE 12

Explosion Proof Transmitter from GE’s

Rheonik Mass Flowmeter Experts

RHE 11 Features



• Stainless steel housing for wall/hook mounting
• Full 316Ti stainless steel version available
• ATEX approval for installation in hazardous areas
• Available in all comman supply voltages
• Multifungtion (desity, Brix, concertation etc.)
• Analog and pulse outputs, optional RS485, HART interface, optional digital input / output
• Protection class IP66 / NEMA 4x
• Power consumption < 15W

RHE 11 Specifications
Housing	Stainless steel for hook / wall mounting, explosion proof, optional in compalates SS316Ti
Enclosure Rating	IP66 / NEMA 4x
Ambient Temperature	-20°C to +60°C (-4°F to +140°F)
Dimensions	255 x 199 x 236 mm (10.04 x 7.83 x 9.29 in)
Display	LCS 16 characters, 2 lines
Servicing	Via 3 photosensor
Outputs (*)	1-2 analog, 1 frequency/pulse, optinal 1 digital (limit, direction, errros)
Inputs (*)	Optional 1 digital (hold, reset, zero)
Power Supply	230 VAC, 155 VAC or 24VDC;talerance +/- 10%
Cable entries	Integral cable to sensor, 2 x M25 x 1.5, other optional
Serial interface (optimal)	RS 485 or HART
ATEX Approval	Transmitter: Ex II 2(1) G, Ex db eb [ia Ga] IIC T5; sensor: Ex II 1 G, EEx ia IIC T6-T1
Weight	Approx 10 kg (22 lb)

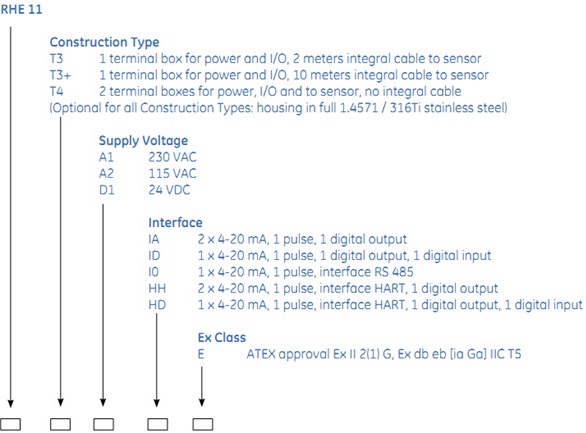

RHE 12 Features

• Compact, pressure safe, coated alumunium housing for wall/hook mounting
• ATEX and CSA approvals for installation in hazardous areas
• Power Supply 24 VDC
• Analog and pulse outputs, Hart interface
• Protection class IP66 / NEMA 4x
• Power consumption approx, 7W

RHE 12 Specifications
Housing	Alumunium for hoo/wall mounting, explosion proof
Enclosure Rating	IP66 / NEMA 4x
Ambient Temperature	-20°C to +55°C (-4°F to + 131°F)
Dimensions	200 x 114 mm (7.9 x 4.5 in) without cable gland/mounting hook
Display	LCD 16 Character, 2 lines
Servicing	Via 2 magnetic sensor, appropriate adjusting magnets are inculded
Outputs (*)	1 analog, 1 frequency/pulse
Power Supply	24 VDC: tolerance +/- 10%
Cable entries	Integral cable to sensor, 1 x NPT 3/4″
Serial Interface	HART
ATEX approval (optional)	Transmitter: Ex II 2 (1) G Ex db [ia Ga] IIC T6; sensor: Ex 1 G. EEx ia IIC T6-T1
CSA approval (optional)	Transmitter: Class 1, Div 1, Gr. B. C. D: sensor: Class Div 1, Gr. B. C. D (bath for USA-Canada)
Weight	Approxx. 3 kg (6.6 lb)
