RHM 12 Standard 1 inch Coriolis Mass FlowmeterRHM 12

The RHM 12 can measure flow meter rates up to 100 kg/min (220 lb/min) with temperatures in excess of 350C abd pressures up to 331 bar. This model is truly a versatile solution, manufactured by GE’s Rheonik mass flowmeter experts.



Applications

  • General control
  • Batching
  • Dosing
  • Injections
  • Mixing
  • Filling



Features

  • Flow Uncertainty down to 0.12%
  • Density uncertainty down to 0.5%
  • Repeatability better than 0.05%
  • Unique torsion oscillator
  • Typical maesuringranges from 1 to 100 kg/min
  • Minimal flows as low as 0.75 kg/min
  • Optimized solutions for batching operation
  • Customization possible
  • Extra compact design with minimal space requirement
  • Hazardous Area Approvals (ATEX, CSA, …)



Advantages

  • Torsion oscillator design assures most stable and basically drift free measurement and increased signal to noise ratio
  • Not sensitive to changes in pressure
  • Longest life time and increased safety – low strees in welds and increased wall thickness against abrasion
  • No moving parts, practically no maintenance
  • Removable connection manifold available

Repeatability

Better ± 0.1% of rate,

Goldline 0.05%



Density

Down to 0.5% uncertainty



Temperature

Better ± 1°C



(*) Nominal flow Qnom refers to roughly 8 – 10 m/s (26 – 33 ft/s) velocity in measuring loops for best perfomance.

(**) Selected sensors are only available in combination with temperature options T1, TA, standard material and pressure range.



Serial/single path versions offer the same accuracy at half the flow (Qmax serial version = 50 kg/min).

No relevent pressure effect due to torsional ascillation and semi-circle (non-deforming) measurement section.

Uncertainty of reading (inch. zero drift) indications refer to reference conditions H2O, 18-24°C (66-76°F), 1 – 3 bar (15 – 45 psi) and installation according to field manual.

Pressure drop indications refer to H2O, with parallel measuring loops type P1 and standard manifold block connections.

For calibration to customer range and/ or with improved uncertainty, please consult factory.





General Specifications RHM 12



Temperature Range

  • NT Models from -20 to +120°C (-4 to +248°F)
  • ET Models from -45 to +120°C (-49 to +248°F)
  • ET2 Models from -45 to +210°C (-49 to +410°F)
  • ET1 Models from -196 to +50°C (-320 to +122°F)
  • HT Models from 0 to 350°C (+32 to +662°F)

(Heating for housing optional, please consult your local agent)



Electrical Connection

  • Junction box Alumunium coated (standard). Junction box in SS 316Ti optinal
  • Cable entry M25 x 1.5. Optional cable entries M20 x 1.5, 1/2″ NPT or 3/4″ NPT
  • MAx cable length between RHM and RHE is 100m (330 ft). 200m (660 ft) only with factory approval



Material of Wetted Parts

  • 4571 / SS 316 Ti / UNS S31635 (standard)
  • 4602 / Alloy C22 / UNS N06022
  • Tantalum
  • Others on request



Sensor Eclosure/Housing

  • Stainless Steel 1.4301 / SS 314, optional in 1.4571 / SS 316T1. Others on request
  • Protection Class IP 65. Optional IP 66 / NEMA 4x



Approvals

  • ATEX Ex II 1 G, EEx ia IIC T6-T1
  • CSA USA-Canada, Class 1, Div. 1, Groups A, B, C, D
  • PED according to directive 97/23/EC: Art.3 (3) Sound Engineering Practice (SEP), Module A1 or Module B + C1 (depending on construction type and maesured fluid)
  • Others on request

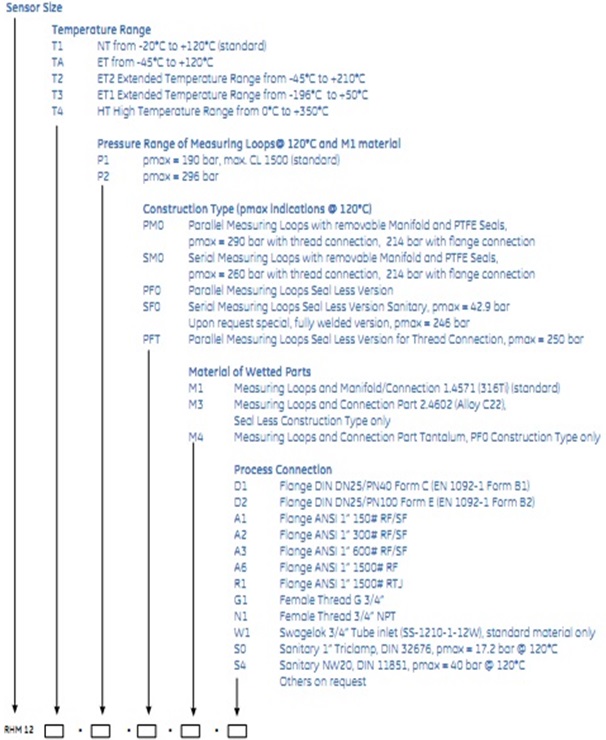

Basic Order Code RHM 12

Code order RHM 12
