Rheonik Coriolis FLowmeter RHM 08

Rheonik Coriolis FLowmeter RHM 08

GE Measurement & Control



RHM 08 On of the most popular Rheonik Mass FlowmetersRHM 04

The RHM 08 can meausure flow rates up to 50 kg/min (110 lb/min) with the temperature in excess of 350C and pressure up to 1067 bar. This model affers unique, versalite solutions, manufactured by GE’s Rheonik mass flowmeter experts.



Applications

  • General Control
  • Batching
  • Dosing
  • Injections
  • Mixing
  • Filling



Features

  • Available as very high pressure versions up to 1067 bar
  • Flow uncertainty down to 0.10%
  • Repetability better than 0.05%
  • Unique Torsion Oscillator
  • Typical measuring ranges from 0.5 to 50 kg/min
  • Minimal Flows as low as 0.3 kg/min
  • Optimized solutions for batching
  • Cuztomization possible
  • Extra compact design with minimal space requirement
  • Hazardous Area Approvals (ATEX, CSA, …)



Advantages

  • Torsion oscillator design assures most stable and basically drift free measurement and increased signal to noise ratio
  • Not sensitive to changes in pressure
  • Longest life time and increased safety (low stress in welds and increased wall thickness against abrasion)
  • No moving parts, practically no maintenance
  • Removable connection manifold available

Repeatability

Better ± 0.1% of rate

Goldline 0.05%



Temperature

Better ± 1°C



(*) Nominal flow Qnom refers ro roughly 8 – 10 m/s (26 – 33 ft/s) velocity in measuring loops for best perfomance. For PH0 and PHH Construction Type, Qmax and upper calibration limit is 25 kg/min, Qnom is 20 kg/min.

(**) selected sensors are only available in combination with temperature ranges T1, TA, standard material and pressure range.

  • Serial/single path versions offer the same accuracy at half the flow (Qmax serial version = 25 kg/min).
  • No relevant pressure effect due to torsional ascillation and semi-circle (non-deforming) measuring section.
  • Uncertainty of reading (incl. zero drift) indications refer to reference conditions H20, 18-24°C (66-76°F), 1 – 3 bar (15 – 45 psi) and installation according to field manual.
  • Pressure drop indications refer to H20, with parallel measuring loops type P0 and standard manifold block connections.
  • For calibration to customer range and/ or with improved uncertainty, please consult factory.



General Specifications RHM 08



Temperature Range

  • NT Models from -20 to +120°C (-4 to +248°F)
  • ET Models from -45 to +120°C (-49 to +248°F)
  • ET2 Models from -45 to +210°C (-49 to +410°F)
  • ET1 Models from -196 to +50°C (-320 to +122°F)
  • HT Models from 0 to 350°C (+32 to +662°F)

(Heating for housing, please consult ypur local agent)



Electrical Connection

  • Junction box Alumunium coated (standard). Junction box in SS 316Ti optional
  • Cable entry M25 x 1.5. Optinal cable entries M20 x 1.5, 1/2 NPT or 3/4 NPT
  • Max cable length between RHM and RHE is 100m (330 ft). 200m (660 ft) only with factory approval



Material of Wetted parts

  • 4571 / SS 316 Ti / UNS S31635 (standard)
  • 4602 / Alloy C22 / UNS N06022
  • Tantalum
  • HP160
  • Others on request



Sensor Enclosure/Housing

  • Stainless Steel 1.4301 / SS 304, optional in 1.4571 / SS 316Ti. Others on request
  • Protection Class IP 65. OptionalIP 66 / NEMA 4x



Approvals

  • ATEX (CESI 02 ATEX 053 X) EX II 1G, EEx ia IIC T6-T1
  • CSA USA-Canada, Class 1, DIV. 1, Groups A, B, C, D
  • PED according to directive 97/23/EC Art.3 (3) Sound Engineering Practice (SEP)
  • Others on request

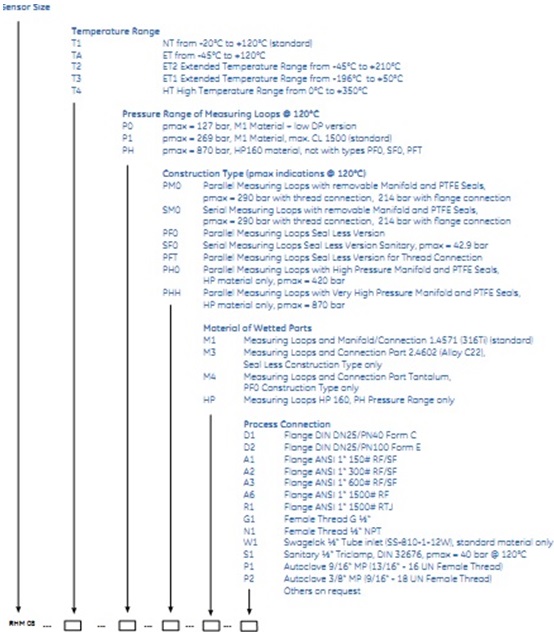

Basic Order Code RHM 08

Code order RHM 08

Product
