GENERAL INFORMATION
These versatile impeller flowmeters are availalble in 3/8″, 1/2”, 3/4”, and 1″ nominal pipe sizes with female NPT threads (SAE optional). They employ jewel bearings to allow for very low minimum flow rates and superior life.

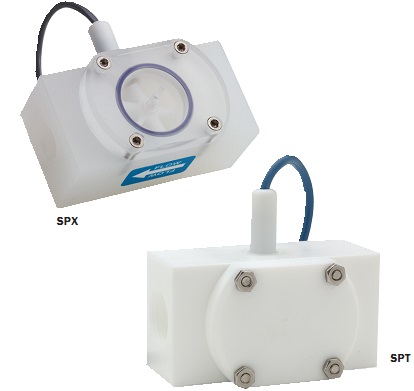

With a body material of polypropylene, the SPX is an economical choice for metering water or low corrosion fluids. The lens cover is available in a choice of materials: acrylic for visual flow indication of low-corrosion fluids; polypropylene when more corrosion resistance is needed. The standard rotor assembly is Kynar with tungsten carbide shaft (ceramic shaft optional). The O-ring is EPDM.
The SPT offers greater chemical resistance with a Teflon body and cover, Teflon-coated Viton O-ring, and standard Kynar/ceramic rotor assembly (silicon carbide shaft optional).
The pulse output of these meters is compatible with many different types of controls, including a full range of Seametrics rate displays and controls. The Seametrics FT420 provides flow rate and total flow indication, with 4-20 mA output capability. The FT415 is a battery-operated rate & total display. For metering pump pacing or interfacing with lowspeed counters, the PD10 pulse divider is recommended. The AO55 may be used for blind 4-20mA transmission.

APPLICATIONS
• Low flow monitoring
• Chemical batching
• Proportional chemical injection
• Fertilizer injection
FEATURES
• Accurate at low flows
• Simple and durable
• Compatible with a variety of chemicals
• Visual flow monitoring (SPX Only)
SPECIFICATIONS

FLOWRANGE
