GE Measurement & Control RHM 04

RHM 04 Versatile Coriolis Mass Flowmeter with Fast Response Times For Very High Pressure ApplicationsRHM 04

The RHM 04 can maesure flow rates up to 10 kg/min (22 lb/min) with extremely fast response times and excellent repeatability. A very higt pressure version up to 1067 bar is also available, manufactured by GE’s Rheonik mass flowmeter expets.



Applications

  • General control
  • Batching
  • Dosing
  • Injections
  • Mixing
  • Filling



Features

  • Available as very high pressure version up yo 1067 bar
  • Flow uncertainty down to 0.10%
  • Repeatability better than 0.05%
  • Unique torsion ascillator
  • Typical measuring ranges from 0.1 to 10 kg/min
  • Minimal flows as low as 50 g/min
  • Customization possible
  • Extra compact design with minimal space repuirement
  • Hazardous Area Approvals (ATEX, CSA, …)



Advantages

  • Torsion ascillator design assures most stable and basically drift free maeasurement and increased signal to noise ratio
  • Not sensitive to changes in pressure
  • Longest life time and increased safety (low stress in welds and increased wall thickness against abrasion)
  • No moving parts, practically no maintenance
  • Removable connection manifold available

Repeatability

Better ± 0.1% of rate,

Goldline 0.05%



Temperature

Better 1°C



(*) Nominal flow Qnom refers to roughly 8 – 10 m/s (33 ft/s) velocity in measuring loops for best perfomance.

(**) Selected sensors are only available in combination with temperature option T1, TA, standard material and pressure range

  • Serial/single path versions offer the some accuracy at half the flow (qmax serial version = 5 kg/min)
  • No relevant pressure affect due to tersional ascillation and semi – circle (non-deforming) measurement section
  • Uncertainty of reading (incl. zero drift) indications refer to reference conditions H2O, 18-24C (66 – 76F), 1 – 3 bar (15 – 45 psi) and installation according to field manual.
  • Pressure drop indiactions refer to H2O, with parrallel maesuring loops type P1 and standard manifold block connections
  • For calibration to customer range and / or with improved uncertainty, please consult factory



General Specifications RHM 04



Temperature Range

  • NT Models from -20 to +120C (-4 to +248F)
  • ET Models from -45 to +120C (-49 to +248F)
  • ET2 Models from -45 to +210C (-49 to +410F)
  • ET1 Models from -196 to +50C (-320 to +122F)
  • HT Models from 0 to 350C (+32 to +662F)

(Haeting for housing optional, please consult your local agent)



Electrical Connection

  • Junction box Alumunium caated (standard). Junction box in SS 316Ti optional
  • Cable entry M25 x 1.5. Optional cable entries M20 x 1.5, 1/2″ NPT 0r 3/4″ NPT
  • Max cable lenght between RHM and RHE is 100m (330 ft). 200m (660 ft) only with factory opproval



Material of Watted Parts

  • 4539 / SS 904 L / UNS N08904 (standard measuring loops material)
  • 4571 / SS 316 Ti / UNS S31635 (standard connection part material, optional measuring loops material)
  • 4602 / Alloy C22 / UNS N06022
  • HP 160
  • Others on request



Sensor Enclosure / Housing

  • Stainless Steel 1.4301 / SS 304, optinal in 1.4571 / SS 316Ti. Others on request
  • Protection Class IP 65. Optional IP 66 / NEMA 4x



Approvals

  • ATEX (CESI 02 ATEX 053 X) Ex II 1 G, EEx ia IIC T6-T1
  • CSA USA-Canada, Class I, Div. 1, Groups A, B, C, D
  • PED Accroding to directive 97/23/EC Art.3 (3) Sound Engineering Practice (SEP)
  • Otherson request

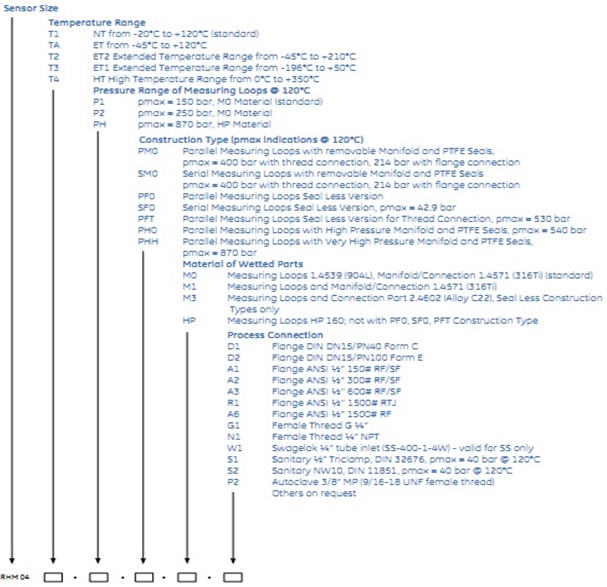

Basic Order Code RHM 04

Code order RHM 04
