Rheonik Coriolis Flowmeter RHE 15 / RHE 14 EZB

Additional Transmitter Modules From GE’s Rheonik

Mass Flowmeter Experts

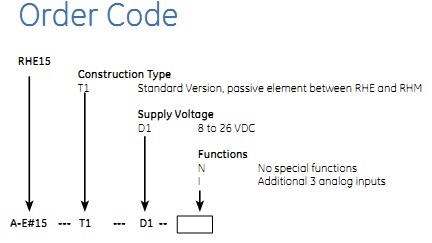

RHE 15 – PROFIBUS DP Module

• allows bi-directional communication with a PROFIBUS DP system in combination with transmitter RHE14
• optional 3 analog signals and 1 pulse output from any instrument (including RHE 07/08/11) to be converted for PRFIBUS Dp
• Compact plastic housing, DIN rail mounting
• PROFIBUS bitrate up to 1.5 Mbit/s
• Power consumption 2 -3 W

RHE 15 Specifications
Housing	PC/PPO (plastic) for DIN rail mountion
Enclosure Rating	IP20
Ambient Temperature	-40°C to + 65°C (-40°F + 149°F)
Dimensions	70 x 86 x 58 mm (2.76 x 3.39 x 2.28 in)
Inputs	RS 232 via Hart, 1 pulse (active TTL), aptional 3 analog (0-20 mA)
Outputs	PROFIBUS
Servicing	Via PROFIBUS DP master or RS 232 terminal program
Power Supply	8 to 26 VDC
Cable Connection	Terminal block, sub-D female 9 contacts
Weight	approx. 0.2 kg (0.44 lb)

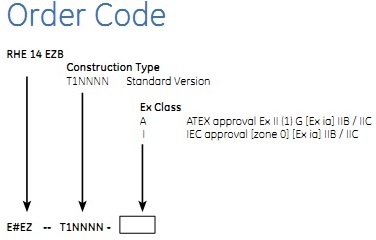

RHE 14 EZB – Safety Barrier

Module for RHE 14/ RHE 16

• Allows the RHE 14/ RHE 16 transmitter to operate an RHE sensor installed an a hazardous area
• Compact plastic housing, DIN rail
• ATEX and IEC certified
• No power supply required

EZB 14 Specifications
Housing	PC/PPO (plastic) for DIN rail mounting
Enclosure Rating	IP20
Ambient Temperature	-20°C to + 55°C (-4°F to + 131°F)
Dimensions	105 x 86 x 58 mm (4.13 x 3.39 x 2.28 in)
Cable Connection	Terminal Block
ATEX Approval	EX II (1) G (Ex ia) IIB / IIC (RHE 14 and EZB 14 in safe area)
IEC Approval (optional)	(zone 0) (Ex ia) IIB / IIC (RHE 14 and Ezb 14 in safe area)
Weight	Approx. 0.2 kg (0.44 lb)
