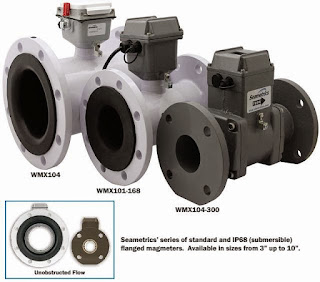

The WMX-Series are fanged electromagnetic fowmeters for use in 4” to 10” pipe in municipal or industrial water and wastewater

applications where propeller meters have typically been used in the past. Because the WMX has no moving parts and has

electrodes designed to discourage fouling, this magmeter performs well and requires much less frequent maintenance

in applications where debris would impede propeller meters. There is no rotor to stop turning or bearings to wear out. Minimal

straight pipe requirements allow WMX-Series meters to be used in piping confgurations where there is little space between the

meter and an elbow.In chemical injection applications, the meter should be placed upstream of the injection line or far enough downstream for thorough mixing to occur before the meter.Rate and total indication are standard on both models. Units

are customer-selected and factory-set. No set-up is required.The WMX101 is externally powered with 7-26 Vdc at 30 mA max

(see NOTE in Specifcations). Two Lithium 3.6V “AA” batteries provide auxiliary power during power failures, allowing the meter

to continue recording fow rate and total without interruption for the duration of the outage. Where external power loss is

infrequent, battery life should exceed 10 years.
