SL1188 Ultrasonic flow meter
Clamp On Installation Flow Meters

The SL1188 ultrasonic flowmeter can be used to measure flow and provide water quality data acquisition at the same time. Data for flow, pressure, turbidity, residual chlorine and pH can be collected at the same time. The system is simple, reliable and convenient to use.

The SiteLab SL1188 Flow meters is a state-of-the-art universal transit-time FlowMeter for Heavy Industrial applications. Sophisticated electronics incorporating the latest developments in digital signal processing coupled with powerful ultrasonic transducers deliver highly accurate flow measurement for liquids in full pipes. While principally designed for clean liquid applications, the instrument is tolerant of liquids with a small quantity of air bubbles or suspended solids common in most industrial applications.

Use GPRS wireless communications for wide coverage and reliable communications.  There is no need to install outdoor antennas which greatly shortens project installation and start up time and reduces total project cost greatly.

The SL1188 Ultrasonic clamp on flow meters is a state-of-the-art universal transit-time flow meter designed using SLSI technology and low voltage broadband  pulse  transmission.  While  principally  designed  for  clean  liquid  applications,  the  instrument  is  tolerant of liquids with small amounts of air bubbles or suspended solids found in most industrial environments.

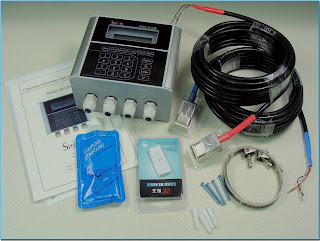

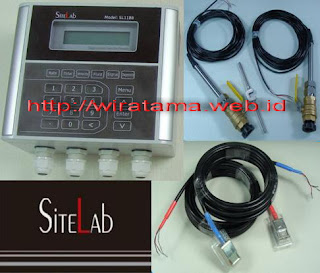

The SL1188 ultrasonic clamp on flow meters offers low power consumption, high reliability, and outstanding applicability at an economical price. An easy to read display and clear, user-friendly menu selections make using the instrument simple and convenient. The instrument can be configured via keypad without any additional programming devices, is packaged in a die cast IP65 housing, and is available in your choice of non-invasive clamp-on or insertion transducer configurations.

The SL1188 ultrasonic flow meters features a self-contained 4-20 mA current loop signal output for instantaneous flow, as well as two independent temperature inputs for thermal energy monitoring. The instrument also features a 7 digit alpha- numeric display, parallel operation of positive, negative and net flow totalizers (with user-selectable scale factors) and configurable pulse and frequency outputs (transmitted via relay and open collector) for totalized flow. As standard it incorporates a 1G SD Card for data logging and is supplied with the software to download stored data to your PC.

Features :
Accuracy +/-0.5% of Reading
Wide operating temperature range -40C to 150 C
One meter for a wide range of pipe sizes 25mm-5000mm

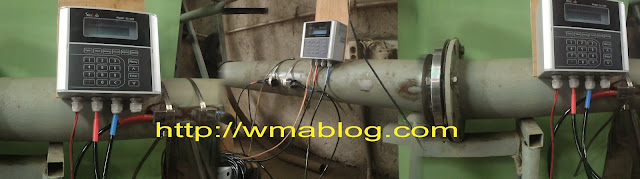

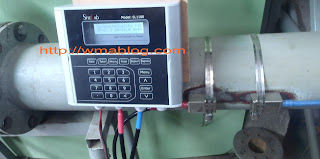

Clamp on sensors are simple to install, leading to lower installation and labor costs
Clamp on sensors mean no pipe cutting or process interruption and no plant shut-down
Wetted Sensors available for acoustically dead pipes.
Hygienic measurement, no risk of contamination, suitable for ultra clean liquids
Wide bi-directional Flow range of 0 to 12Metres/Second
Daily, monthly and yearly totalized flow
Internally configured batch controller makes batch control convenient
Measurement is independent of fluid conductivity meaning a wider applicability than magnetic meters
1G SD card high memory data logging, maximum memorize 512 days data.
Simple Menu driven setup with a wide range of common pipe materials, liners and fluids selectable.
Temperature inputs for energy measurement.

SPECIFICATIONS

Flow Range  : 0 to ±12 m/s
Accuracy : ± 0.5 % of reading
Repeatability : ±0.3% of reading
Pipe Size : 25mm to 5000mm
Keypad : 16 (4×4) key with tactile action
Temperature : Transmitter:-40C to 60C
Humidity : Up to 99%RH, (non-condensing)
Display : 40 character, 2 line (20×2) lattice alphanumeric, backlit LCD
Transducer : -40C to 100C Standard. -40C to 150C High temp.

Outputs :
Analog : 0/4 to 20mA (max load 75Ω)
Pulse output : 0 to 9999Hz, OCT, (min. and max. frequency is adjustable)
Relay output : SPST, max 1Hz, (IA@125VAC or 2A @ 30VDC)
Comms : RS232, RS485 Mod bus
Power Supply : 90 to 245 VAC, 48 to 63Hz. Or 10 to 36 VDC (both are standard)
Physical Specifications :
Transmitter : IP65 Die-cast aluminum
Transducer : Encapsulated design Standard/maximum cable length : 9m/305Metres
Weight Transmitter : Approximately 4.7 lb (2.15kg)
Transducer : 0.9kg (standard)
